Description

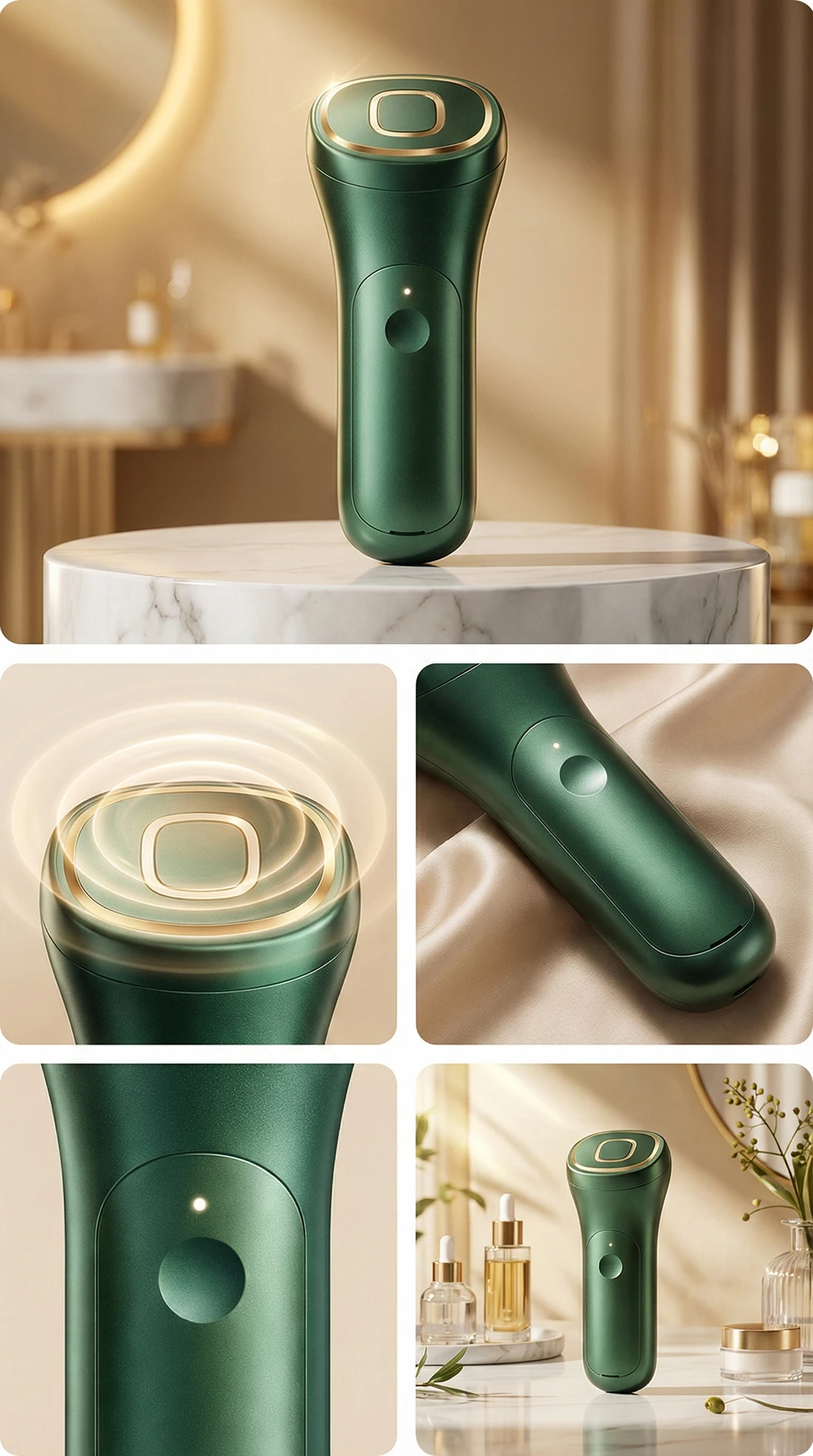

Designed as a handheld device that blends seamlessly into daily routines, VERDE features a minimalist single-button interface and a stable, ergonomic grip. The green pearl coating and gold trim elevate its premium impression, while the refined, planar geometry of the top head section reinforces a clean, tech-forward mood. From an ODM perspective, this product can be proposed as a full development package including exterior design and CMF (Color, Material & Finish) guidelines, manufacturing feasibility reviews for mass production (injection molding, coating/painting, and assembly), and a structured QC checkpoint plan.
- Description
- Specification
Item 1
Item 2
Mechanical Specification
Dimensions
182 × 46 × 42 mm
Weight
190–220 g
Housing Material
PC+ABS + Metallic Coating
Surface Finish
Matte UV + Gold anodized trim
Treatment Head
Square rounded RF electrode
Contact Surface
34 × 30 mm
Electrode Material
Aluminum Alloy / SUS316L
Waterproof Rating
IPX5 (IPX7 optional)
Thermal Insulation
Internal ceramic isolation layer
Core Technology
RF Frequency
1 MHz bipolar
RF Output Power
3–10 W adjustable
Temperature Range
38–45°C ±1°C
EMS Output
50–300 μA (optional module)
LED Therapy
Red 630nm / Blue 415nm (optional ring)
Skin Contact Detection
Impedance monitoring
Electrical Specification
Battery Type
1000–1400 mAh Li-ion
Input Voltage
DC 5V
Charging Interface
USB-C
Charging Time
2 hours
Operating Time
60–100 minutes
Power Control
Smart thermal stabilization
Firmware & Safety
Mode Control
Single button multi-mode
Intensity Levels
3–5 programmable
Auto Shut-off
10 min
Temperature Monitoring
Dual NTC sensors
Safety Protection
Overheat / Overcurrent / Short circuit
RF Stability Control
Closed-loop feedback
Manufacturing & QC
RF Calibration
100% frequency verification
Thermal Calibration
±1°C tolerance
Aging Test
6-hour continuous run
Output Stability Test
30-minute load test
Waterproof Test
Pressure sampling
Cosmetic Inspection
AQL 0.65–1.0
OEM Customization Scope
Exterior Color
Full custom (Pantone match)
Metallic Trim
Gold / Rose Gold / Silver
Firmware Mapping
Output curve tuning
LED Color
Customizable
Packaging
Premium magnetic box
Docking Station
Optional
App Integration
BLE optional
Logo
Laser / UV print
